Color Coated Aluminium-Haomei Aluminium
+86-0371-65621391
Add:1103 No.14 Shangwu Outer Ring Rd, New District, Zhengzhou, China.
Email:sale@alumhm.com
We can produce painted channel letter aluminum coil for roof sheet /gutters the thickness from 0.05mm to 3.0mm, the width from 40mm to 1600mm, the paint including AC/PE/PVDF/HDPE/FEVE. The Alloy No. is 1000 series, 3000 series and 8000 series .
Our painted aluminum coil is designed for every type of gutter application, ranging from residential to commercial installations. All coils are packed with protection in mind by utilizing boxes, bands, cardboard, or shrink wrap to preserve the integrity of the coil. Prior to factory painting of our coil, the aluminum receives a special cleaning process to insure maximum adhesion. All of our accessories also have the same finish to ensure that our Limited Lifetime Warranty covering our products is applicable.
Our aluminum coils are available in 20 of todays most popular colors. The coils are painted utilizing a baked on enamel coating process and are warranted from chipping or cracking for 20 years.
|
CHEMICAL COMPOSITION |
|||||||
|
Grade |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
|
1050 |
0.25 |
0.4 |
0.05 |
0.05 |
0.05 |
/ |
0.05 |
|
1070 |
0.2 |
0.25 |
0.04 |
0.03 |
0.03 |
/ |
0.04 |
|
1100 |
1.0 (Si+Fe) |
0.05-0.2 |
0.05 |
/ |
/ |
0.1 |
|
|
3003 |
0.6 |
0.7 |
0.05-0.2 |
1.0-1.5 |
/ |
/ |
0.1 |
|
3004 |
0.3 |
0.7 |
0.25 |
1.0-1.5 |
0.8-1.3 |
/ |
0.25 |
|
8011 |
0.05-0.9 |
0.6-1.0 |
0.1 |
0.2 |
0.05 |
0.05 |
0.1 |
Before purchasing any color coated aluminum coils, it is vital you understand the specific strains the material will face during use. Properties to pay attention to include:
• Tensile Strength
• Wettability
• Weldability
• Formability
• Corrosion Resistance

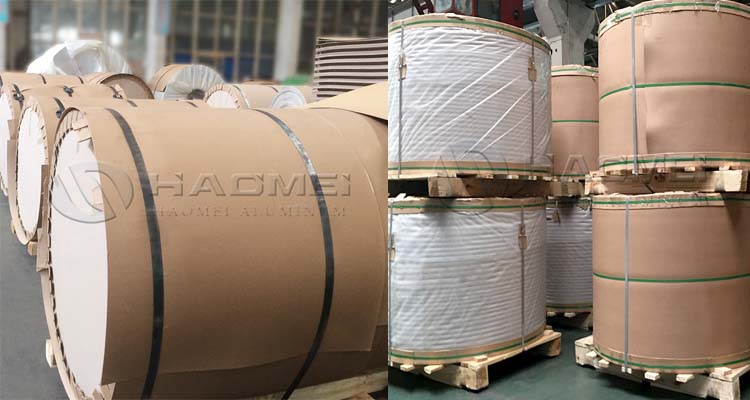

Packaging Details of painted channel letter aluminum coil:
The Dimension Is 20Cmx1220Mmx2440Mm;
20Ft Container Can Load 25 Tons Max ;
40Ft Container Can Load 27 Tons Max ;
