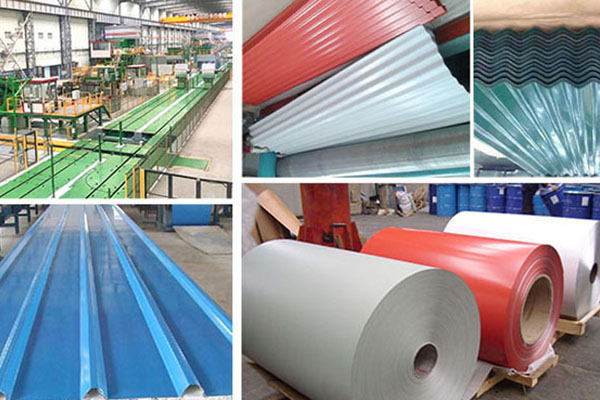

Repainted color coated aluminum coil for composite

　　The repainted color coated aluminum coil for composite refers to colored aluminium coil used in making composite panels like heat insulation panels, honeycomb panels, aluminium roofing sheets etc. The maximum width of the aluminum coil processed by our roller coating is 2350mm, and the maximum thickness of the roller coating is 2.5mm. The two new lines can process 400-500 tons of aluminum coils 24 hours without interruption.

　　The classification of repainted aluminum coil is as below.

　　1. Based on surface coating: polyester PE coated aluminum coil, fluorocarbon PVDF coated aluminum coil, epoxy roller coated aluminum coil. Of course, there are cases where one side is coated with fluorocarbon and the other side is coated with polyester; there are even cases where both sides are coated with fluorocarbon;

　　2. Based on coating thickness: single coating (4-20 microns); double coating (25-28 microns); 3 coatings (35-38 microns);

　　3. Based on surface pattern: wood grain aluminum roll and stone grain aluminum roll;

　　4. Embossed aluminum coils: stucco, diamond, and map patterns. Haomei embossed aluminum coil width up to 1300mm, thickness up to 1.2mm;

　　5. Based on uses: roofing materials (aluminum-magnesium-manganese roofing systems), ceiling materials (doing aluminum alloy ceilings), appliance panels (used in the interior and exterior of household appliances, in line with EU Rohs standards), and food materials ( Food grade chrome and roll coating, in line with US FDA standards), wire drawing board (surface is wire-drawn), etc.

　　Aluminum-plastic composite board is referred to as aluminum-plastic board for short. It is a new type of material that is made of aluminum plate that has been surface-treated and coated with paint as the surface, and polyethylene plastic plate as the core layer. Haomei color coated aluminum coil, the surface of which can be coated with fluorocarbon or polyester coating according to customer's requirements. There are thousands of colors to choose from. Various alloys are complete. Various thicknesses and widths can be customized according to customer requirements. The ideal raw material for manufacturers.

　　Aluminum corrugated composite board is a kind of all-aluminum alloy composite board made by vacuum compounding aluminum alloy panel, bottom plate and aluminum corrugated core. Haomei color-coated aluminum coil, with fluorocarbon coating on the surface, has excellent weather resistance and excellent processability: It can be processed by various methods such as cutting, joining, bending, and rounding. It is a material for producing aluminum alloy corrugated composite panels.

　　The inner and outer layers of the aluminum alloy honeycomb panel are aluminum alloy thin plates, the middle interlayer is a regular hexagonal aluminum foil honeycomb core, and the honeycomb core is bonded and compounded with a structural adhesive and an aluminum alloy surface layer board. Haomei color-coated aluminum coil, the surface can be coated with polyester or fluorocarbon coating according to customer's requirements, and the back is epoxy, which is the first material for making aluminum honeycomb.

　　The surface layer of the metal exterior wall insulation board is color coated aluminum sheet. The aluminum sheet can be decorated with patterns, colors or rolled into specified patterns according to design requirements. It mainly plays a decorative role, and has good weather resistance, corrosion resistance, self-cleaning, etc. Features; the middle layer is polyurethane rigid foam, which has excellent thermal insulation properties. Haomei color-coated aluminum coil, with fluorocarbon coating on the surface, has excellent weather resistance, can be embossed for customer requirements, and is an ideal choice for external wall insulation board manufacturers.
